Description
Low Dual Obstruction Light LS310 Applying to tower(power transportation, telecom, GSM), smokestacks(power plant, coking plant,chemical plant), high buildings, bridge, harbor machinery, construction machinery, wind turbine etc for aircraft warning.
Application & Model Code
Product Name: Low Dual Obstruction Light
Product Model: LS310
Applying to tower(power transportation, telecom, GSM),
smokestacks(power plant, coking plant,chemical plant), high buildings, bridge, harbor machinery, construction machinery, wind turbine etc for aircraft warning.

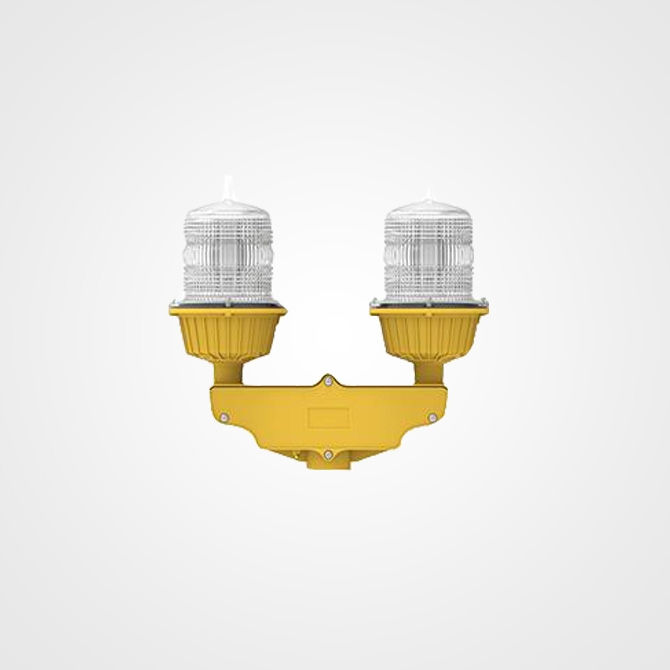

Low Dual Obstruction Light LS310-AVA
Features
Use Fresnel lens, high utilization of light, valid keeping light beam in the scope as required.
Basing is aluminum alloy. It is light weight and corrosion resistance.
Lamp housing is with bird spike. Its material is polycarbonate, good at anti-impact strength, thermal stability, fire resistance.
Based on LED technology, low power consumption, and high efficiency.
G3/4”pipe is available for installation,
Self- contained compartment, with stainless steel wire which is used to secure the unit against falling in operation.
easy for mounting.
Technical Parameters
Light source
Material Certification label
High luminance LED
Light color: red（other color can be customized）
LED lifetime: ≥100,000h
Vertical degree: ≥10°
Horizontal degree: 360°
Intensity: ≥32.5cd
Operating voltage: Operating voltage
Power consumption: 6W single light ( steady burning )
Body：aluminum alloy Housing：PC
Operating temperature: -40˚C ~ +70˚C
Relative humidity: 10% ~ 95% (no condensing）
Weight: 4.5kg
IP protection: IP65
Standard : Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810
