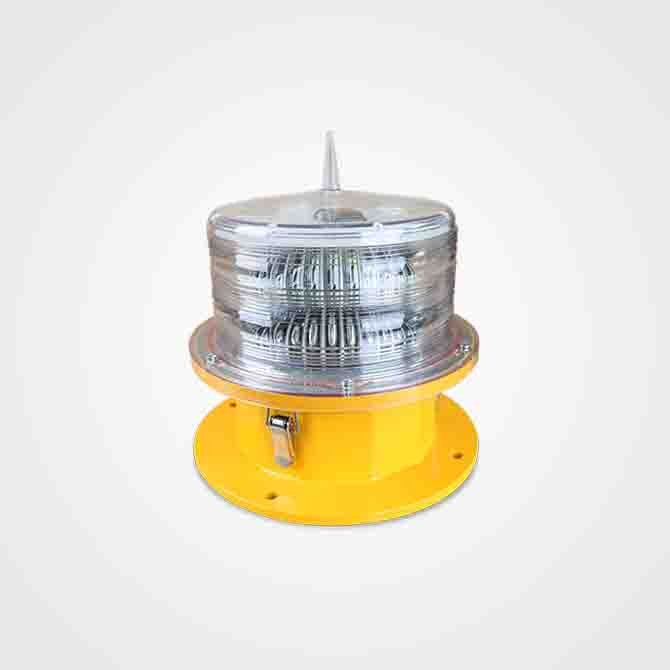

Medium Intensity Light LM40-MIA
Description
LM40 Series type A aviation obstruction lights with ICAO certificate. Type A aviation obstruction light play a warning role in tall buildings to reduce aviation hazards,daytime is white, at night is white or red (optional). Advanced LED, optical and system control technology to meet the advantages of the most demanding applications For towers, chimneys, tall buildings,large bridges, large port machinery, large construction machinery, wind turbines and other aircraft need to play a warning role in the occasion Applicable to obstacles with a height of 105 m to 150 m. Applicable to high salinity areas.

Application & Model Code
LM100 Medium intensity obstruction light for making Towers(Telecom, GSM),Smokestacks (heat-engine plant, coking plant chemical plant etc.),Buildings, Port devise, Construction machinery, wind power generator etc. for air traffic warning.

Medium Intensity Light LM40-MIA

  • Features

    Optics design based on Fresnel lens principle.

    Die casting aluminum base, shockproof and corrosion resistant.

    Based on LED technology, with external long life, low power consumption and high efficiency

    No RF-radiations,EMC Compliant. And constant LED drive to prolong led life.

    PC lamp housing with the sound impact resistance, thermal stability and luster effect.

    Customized function: GPS synchronous function / RS485 communication function.



  • Technical Parameters

    Base

    Product Name:

    Medium Intensity Light

    Product Model :

    LM40

    Electric

    Input Voltage: DC48V
    Power Consumption:

    20FPM≤50W,30FPM≤75W,40FPM≤100W;Night:20 FPM≤15W,30 FPM≤23W,40 FPM≤30W,60FPM≤45W,Steady  FPMburning≤60

    ICAO（Annex 14）medium intensity aviation obstruction light standard and FAA-L864W
    Weight: 7kg
    IP Rate  : IP65

    Certification label

    International Standard :

    ICAO(Annex 14)

    medium intensity aviation obstruction light standard and FAA-L865, CAAC MH6012-2015

    Optics

    Light source

    LED

    Light color

    White / White +Red

    Vertical degree

    ≥3°

    Horizontal degree

    360°

    Flashing rate

    Daytime:

    20/30/40 FPM; Night:20/30/40/60 FPM, Steady burning; Default40FPM

    Intensity

    daytime 20000±25% cd night 2000±25% cd

    On/Off level

    50-200Lux

    ≥100,000h

    Flashing duration

    Daytime:150ms

    Night:：750ms

    Operating Temperature

    -40˚C ~ +55˚C

    Ambient Humidity

    0% ~ 90% (No condensation
